SLIDE SWITCHES
SWITCHES
FAX: 773 792-2129
* Please visit the product pages on our website for the most up-to-date product information

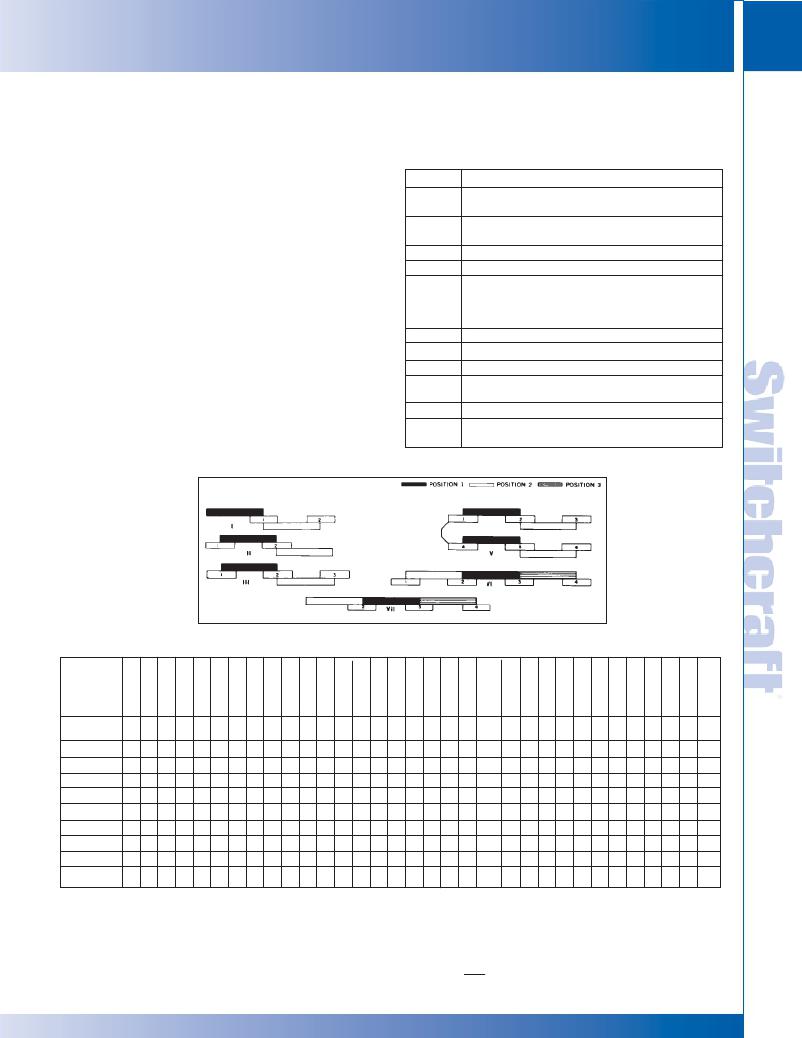

SLIDE SWITCHES (continued)
DESIGN FEATURES (continued)
283
SWITCHING
PART NUMBER SUFFIX LETTERS
“Double-wipe” slide switches incorporate special “Sliders” to
assure wiping action of terminals. This exclusive double
wiping action reduces the possibility of oxidation or increased
contact resistance. These longer lasting, self-cleaning sliders
provide a switch with greater dependability.
The “Sliders”, which are formed with precision dies, are
U-shaped to give bifurcated contact reliability. “Sliders” are
made from a special copper alloy, plated, which assures
uniform tensile strength over the entire life of the switch.
Switch terminals are copper alloy, plated. Plating completely
encloses the contact area in a silver jacket for positive and
continuous electrical operation. A tarnish preventive lubricant
coating is applied to the sliders and terminals.
NOTE: “double-wipe” action on all switches except
Series 62000 and 46256LFR.
BASIC SCHEMATIC CHART
Standard arrangement is “Break” before “Make” (non-shorting).
“Make” before “Break” (shorting) is available on special order
Letter
B
C
D
E
F
L
M
P
R
S
T
Description
Special pushbutton type. Depressing (rather than
sliding) pushbutton operates the switch.
Tandem switch with 2 knobs; knobs are internally
(mechanically) coupled.
3-position switch having internal dust shield.
Molded terminal board.
Flush actuator. Screwdriver slotted. All series except
47000 series marked standard as “115/230.” Other
markings available as special order. Call
Switchcraft for details.
Locking action.
Momentary (non-lock) action.
Switch has external plunger.
Current ratings up to 3A, 125V AC. Phenolic
terminal board.
Shorting type contacts, make-before-break.
3-position switches only. One side of neutral has
locking action; the other side has momentary action.
in Series 46000R, 47000R, 49000 and 50000.
BASIC SCHEMATIC CHART
KNOBS
Series
KNOB HEIGHTS Inches (mm)
46000E
46000R
*
(1)
?
?
?
?
?
*
?
?
?
?
?
?
?
46300R
47000
?
*(1)
?
?
?
?
?
?
?
?
?
?
?
*
*(2)
?
?
?
?
?
?
?
?
?
?
?
?
49000
?
?
?
*
?
?
50000
?
?
?
?
*
?
56200
?
?
*
?
?
?
?
56300
?
?
?
?
*
?
?
?
?
62000 (2)
C63000
EPS (3)
*
*
*
?
* Standard, ? Special order
1. Flush screwdriver actuator is standard on numbers 46206LFE, 46206LFR, 46256LFE, 46256LFR and 47227LFR.
2. Numbers 62206L and C62206L have side knob actuator (rather than top knob) standard.
3. EPS switches not available with raised knobs.
DIMENSIONS ARE FOR REFERENCE ONLY
Inch
(mm)
SWITCHCRAFT, INC. 5555 N. Elston Ave. ? Chicago, IL 60630
